Question 1

What is the main difference between fine grinding and traditional flat lapping?

Accepted Answer

Fine grinding uses fixed superabrasive wheels (Diamond or CBN) with active liquid coolant, whereas traditional lapping uses loose abrasive slurry rolled between cast iron plates. Fine grinding offers significantly higher stock removal rates, cleaner operation, faster cycle times, and eliminates the need for expensive slurry disposal and part washing procedures.

Question 2

How do double-side fine grinding machines achieve sub-micron parallelism?

Accepted Answer

Double-side fine grinders achieve parallelism under 1 µm by machining both top and bottom faces simultaneously between rigid, counter-rotating wheels. Planetary carrier systems rotate workpieces through a continuously varying geometric path, ensuring uniform material removal and eliminating clamping stresses that distort thin parts.

Question 3

What materials can be machined on a twin-wheel double-side grinder?

Accepted Answer

Double-side fine grinding machines handle both metallic and non-metallic hard materials. Common materials include hardened steel alloys, cast iron, sintered carbide, technical ceramics (alumina, zirconia, silicon nitride), silicon wafers, glass, and carbon seals.

Question 4

Why are independent drive motors important on a fine grinding machine?

Accepted Answer

Independent drives for the upper wheel, lower wheel, and internal ring gear allow operators to independently tune cutting speeds and rotational ratios. This control is critical for optimizing stock removal rates, balancing wheel wear, controlling part rotation, and achieving specific surface roughness requirements.

Question 5

What is the function of an in-process measuring system on a double-side grinder?

Accepted Answer

An in-process measuring system monitors part thickness continuously during active grinding using contact probes or non-contact electronic sensing. Once target thickness is reached, the machine automatically transitions to spark-out and retracts the upper wheel, guaranteeing part-to-part thickness repeatability down to sub-micron tolerances.

Question 6

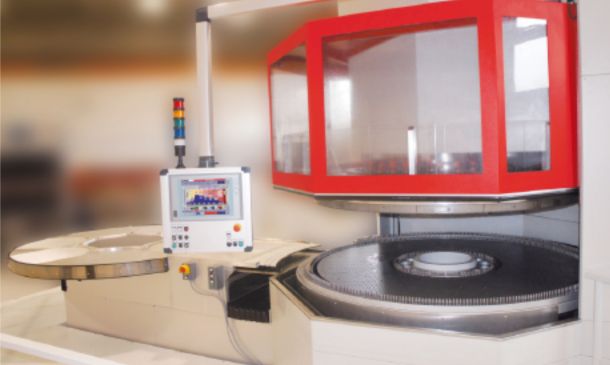

What is the availability and lead time for the Melchiorre ELC 900?

Accepted Answer

While standard factory lead times for high-precision double-side fine grinders can range from 6 to 12 months, the Melchiorre ELC 900 is currently in stock at our Atlanta facility, fully prepped for immediate delivery, installation, and operator training.

The Ultimate Guide to Double-Sided Fine Grinding & High-Precision Flat Lapping
