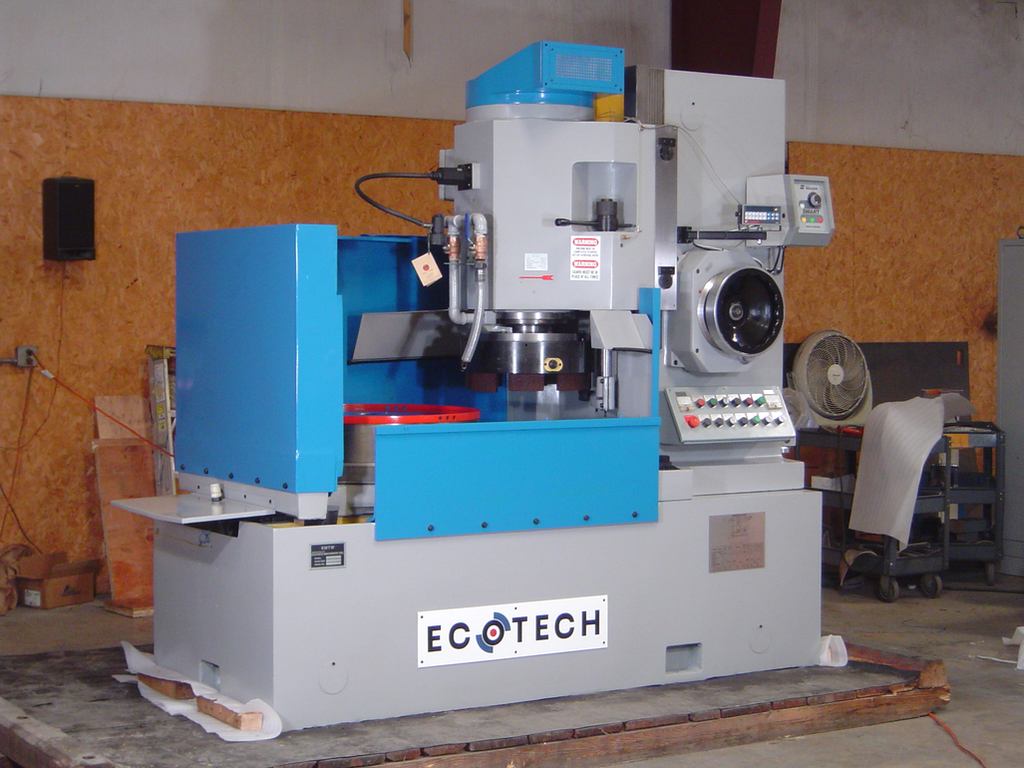

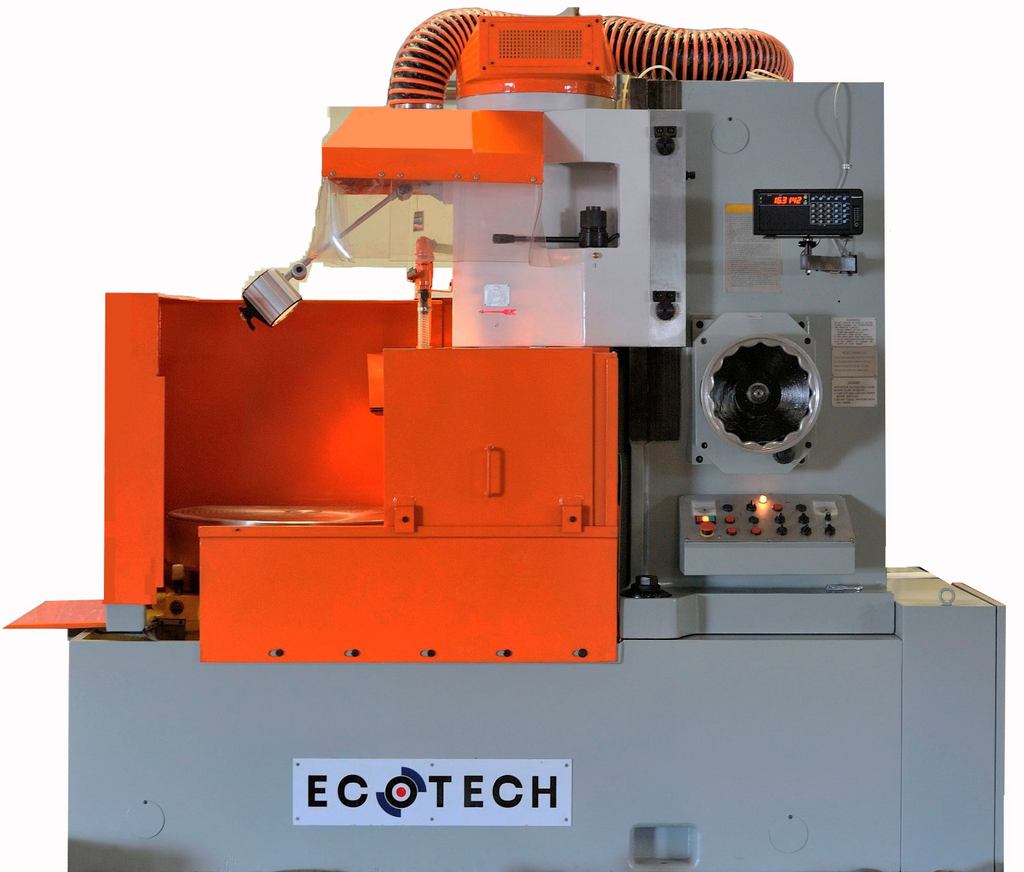

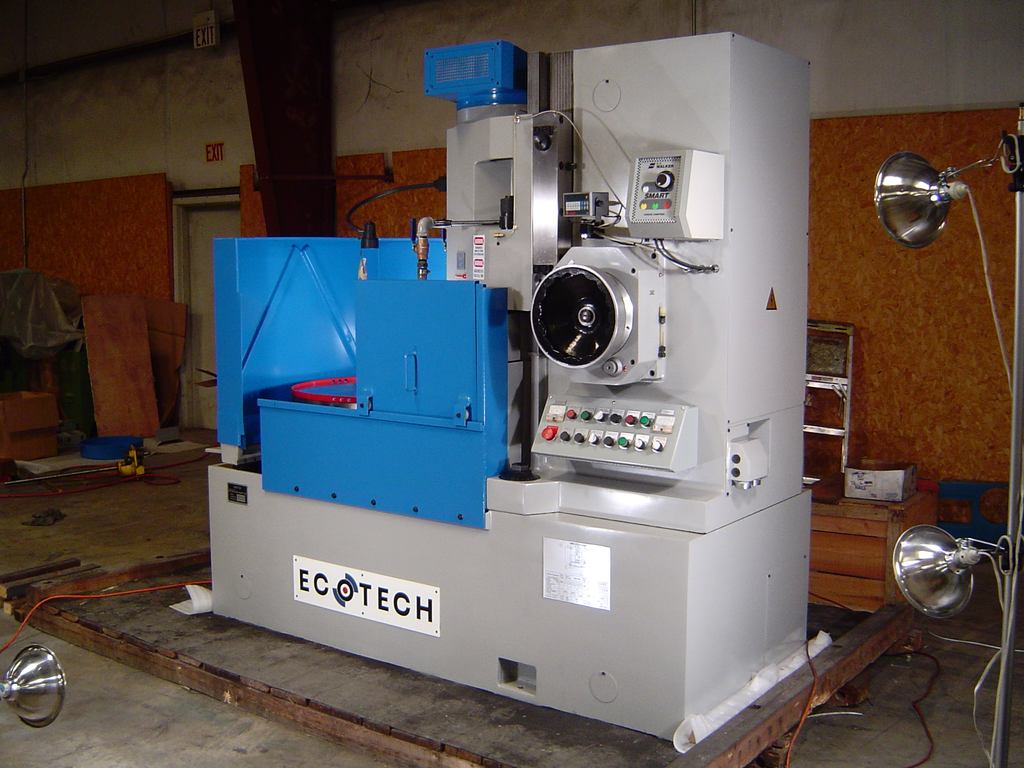

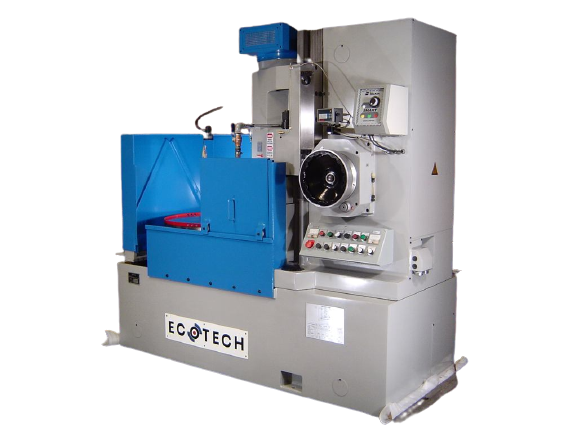

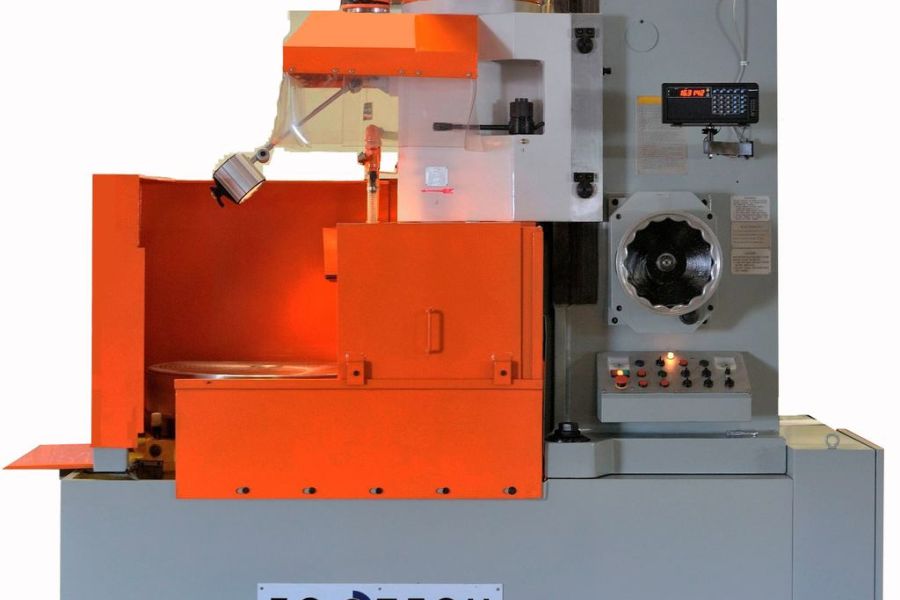

Vertical Rotary Grinders

Vertical Rotary Grinders provide high efficiency compared to conventional surface grinders due to the amount of grinding wheel in contact with the surface area of the workpiece. Their extremely rugged construction and high grinding power allow heavy and rapid stock removal for large castings and plates.


Vertical Grinding Benefits

The primary benefit of vertical rotary grinding is the heavy stock removal rates for all magnetic and non-magnetic materials. When a substantial amount of material has to be removed quickly and efficiently, vertical rotary grinding is more cost-effective than other methods because of the available horsepower (200 hp).

The same Vertical Rotary Grinder is an economical method for finish sizing large steel plates, metal fabrications, and castings - ahead of surface grinding and CNC milling for large plate finishing. Vertical rotary grinding multiple small parts in batches results in consistent thickness and surface finish, eliminating mismatches.

Optional full enclosure and dust/mist collection systems eliminate grinding mist which contributes to a cleaner work environment.

Machining Applications

Large diameter and short length workpieces are ideal for vertical rotary grinding making automotive parts an ideal application of these tools. Another application includes machine tool spindle housing creation.

Optional Accessories

  • DRO
  • Cortland Segment Chuck
  • Dust/Mist Collector
  • Coolant System
  • Auto Lube
  • Walker Chuck Control
  • Fine Pole Magnetic Chuck
  • Full Enclosure

General Information

  • Machine Types

    Conventional, Semi-Automatic, & CNC

  • Models

    VR

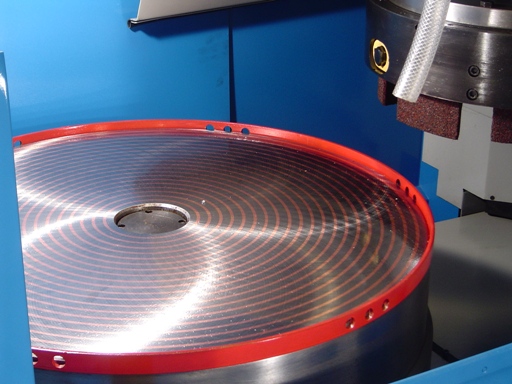

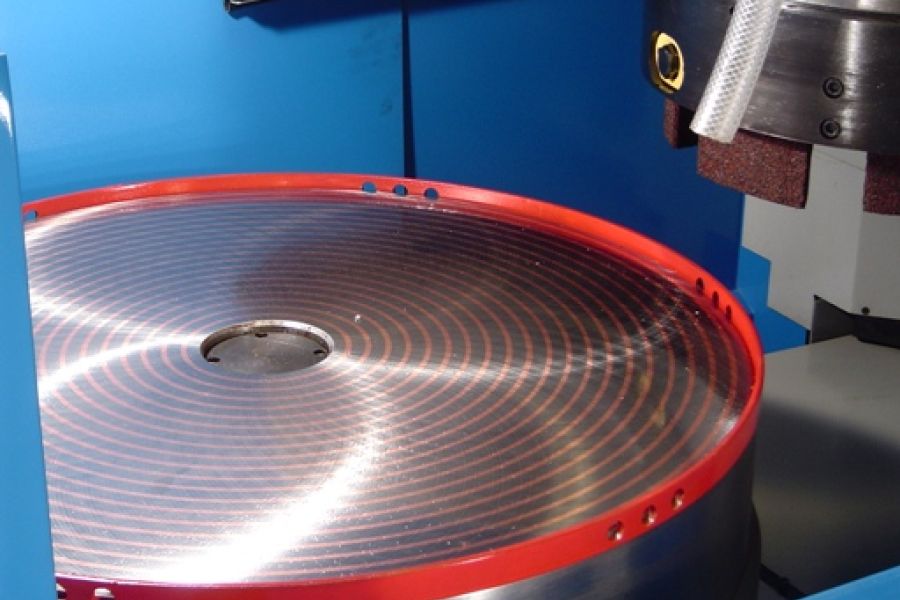

  • Magnetic Chuck Size

    29.53" - 49.21"


Machine Model Technical Comparison Chart

ModelTable Magnetic Chuck Size

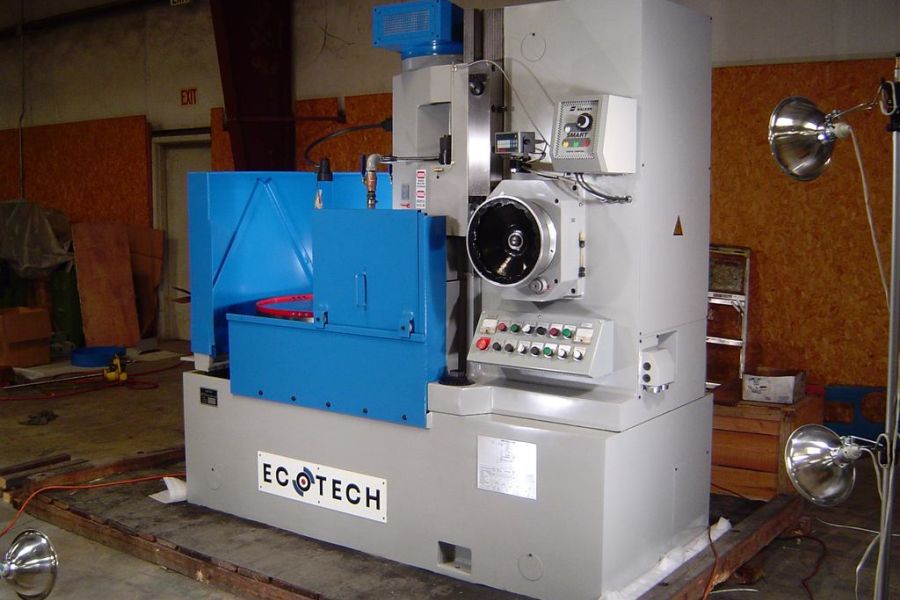

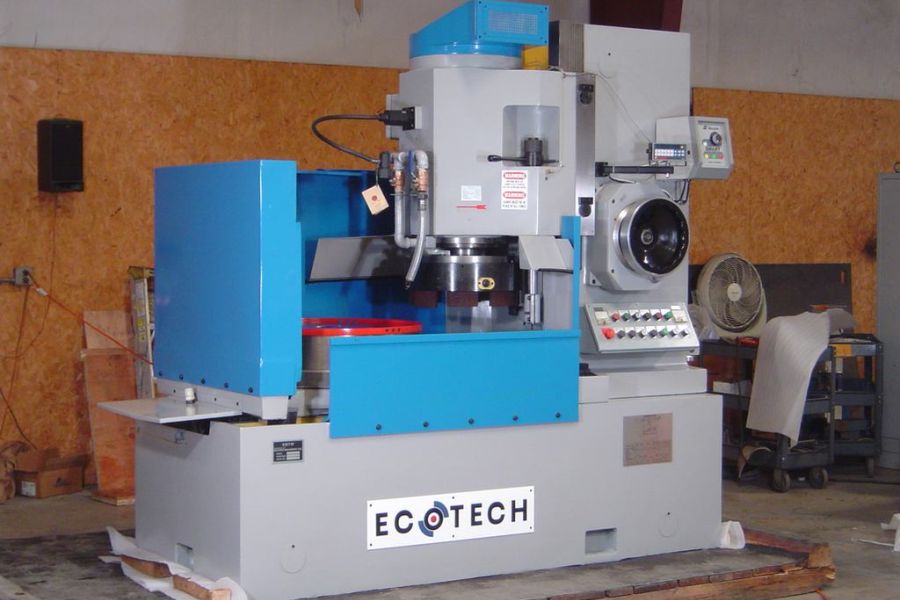

VR30
29.53" / 750mm
VR32
31.5" (800mm)
VR40
39.37" (1000mm)
VR50
49.21" (1250mm)

Video Gallery — Cylindrical Grinding Machines In Action

Technical Machine Documentation

Machine Tech Specs

Vertical Rotary Grinder
